Owing to the PD 250/90 RP´s powerful 470 kW diesel engine and the option to purchase the rig with a crawler gear, a trailer or, alternatively, on steel frame it is one of the most favorite directional drill rigs made by PRIME DRILLING.

The PD 250/90 RP-C is available with the diesel engine including hydraulic system mounted "on board" or supplied in a separate power pack (20 ft. container) similar to the trailer and frame version. With the separate power pack the customer can choose between 330 kW, 470 kW and 570 kW.

Due to the high torque and the high pull force, drillings of up to 2,600 m in length and pipe diameters of up to 1,400 mm are possible. Equipped with a rack and pinion feed system (R&P), the drill mast has a feeding length of 11 m, so that range 2 drill pipes can be used. The drilling angle of the mast of 6° - 15° can be adjusted via 6 hydraulic cylinders which are installed in the front section of the mast support.

Driven by 6 hydraulic motors the power rotary head has a torque of 90,000 Nm and can be shifted into three gear steps. The torque can be increased to 120,000 Nm.

Furthermore the drill rig is available with drill pipe supply system, hydraulic manipulator, drill pipe crane, camera system, a drill data log-in system as well as with further options.

On customers request the PD 250/90 RP can be equipped with an “on board” control cabin or a separate operating container, enabling the machine operator to gain optimum perspective.

The PD 300/90 RP is equipped with a powerful 470 kW diesel engine. Furthermore there is the possibility to purchase this directional drill rig with a crawler gear, a trailer as well as a steel frame.

The PD 300/90 RP-C is available with the diesel engine including hydraulic system mounted "on board" or supplied in a separate power pack (20 ft. container) similar to the trailer and frame version. With the separate power pack the customer can choose between 330 kW, 470 kW and 570 kW.

Due to the high torque and the high pull force, drillings of up to 2,600 m in length and pipe diameters of up to 1,600 mm are possible. Equipped with a rack and pinion feed system (R&P), the drill mast has a feeding length of 11 m, so that range 2 drill pipes can be used. The drilling angle of the mast of 6° - 15° can be adjusted via 6 hydraulic cylinders which are installed in the front section of the mast support.

Driven by 6 hydraulic motors the power rotary head has a torque of 90,000 Nm and can be shifted into three gear steps. The torque can be increased to 120.000 Nm

Furthermore the drill rig is available with drill pipe supply system, hydraulic manipulator, drill pipe crane, camera system, a drill data log-in system as well as with further options.

On customers request the PD 300/90 RP can be equipped with an “on board” control cabin or a separate operating container, enabling the machine operator to gain optimum perspective.

The PD 350/120 RP is equipped with a powerful 470 kW diesel engine. Furthermore there is the possibility to purchase this directional drill rig with a crawler gear, a trailer as well as a steel frame.

The PD 350/120 RP-C is available with the diesel engine including hydraulic system mounted "on board" or supplied in a separate power pack (20 ft. container) similar to the trailer and frame version. With the separate power pack the customer can choose between 330 kW, 470 kW and 570 kW.

Due to the high torque and the high pull force, drillings of up to 2,600 m in length and pipe diameters of up to 1,600 mm are possible. Equipped with a rack and pinion feed system (R&P), the drill mast has a feeding length of 11 m, so that range 2 drill pipes can be used. The drilling angle of the mast of 6° - 15° can be adjusted via 6 hydraulic cylinders which are installed in the front section of the mast support.

Driven by 6 hydraulic motors the power rotary head has a torque of 120,000 Nm and can be shifted into three gear steps. The torque can be increased to 150.000 Nm

Furthermore the drill rig is available with drill pipe supply system, hydraulic manipulator, drill pipe crane, camera system, a drill data log-in system as well as with further options.

On customers request the PD 350/120 RP can be equipped with an “on board” control cabin or a separate operating container, enabling the machine operator to gain optimum perspective.

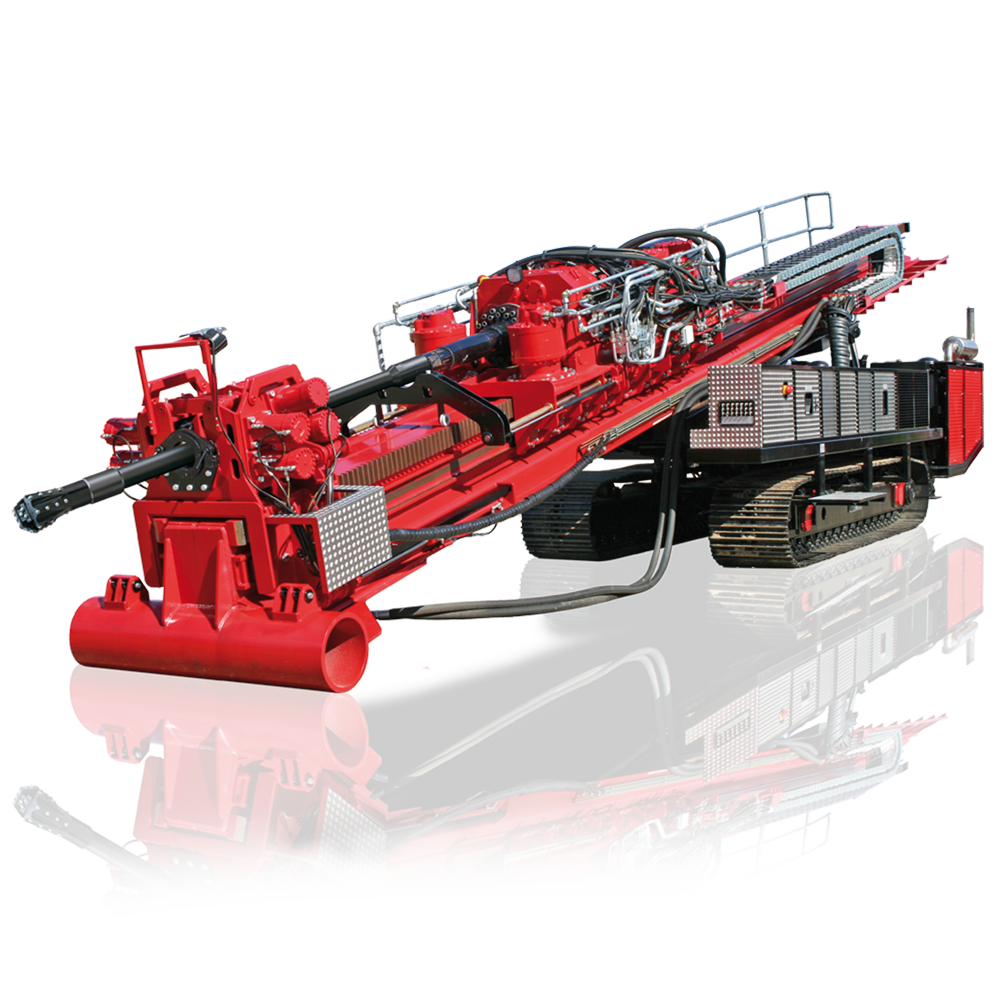

The PD 400/120 RP is equipped with a powerful 470 kW diesel engine. Furthermore there is the possibility to purchase this directional drill rig with a crawler gear, a trailer as well as a steel frame.

The PD 400/120 RP-C is available with the diesel engine including hydraulic system mounted "on board" or supplied in a separate power pack (20 ft. container) similar to the trailer and frame version. With the separate power pack the customer can choose between 330 kW, 470 kW and 570 kW.

Due to the high torque and the high pull force, drillings of up to 2,600 m in length and pipe diameters of up to 1,800 mm are possible. Equipped with a rack and pinion feed system (R&P), the drill mast has a feeding length of 11 m, so that range 2 drill pipes can be used. The drilling angle of the mast of 6° - 15° can be adjusted via 6 hydraulic cylinders which are installed in the front section of the mast support.

Driven by 6 hydraulic motors the power rotary head has a torque of 120,000 Nm and can be shifted into three gear steps. The torque can be increased to 150.000 Nm

Furthermore the drill rig is available with drill pipe supply system, hydraulic manipulator, drill pipe crane, camera system, a drill data log-in system as well as with further options.

On customers request the PD 400/120 RP can be equipped with an “on board” control cabin or a separate operating container, enabling the machine operator to gain optimum perspective.

The PD 450/120 RP is equipped with a powerful 470 kW diesel engine. Furthermore there is the possibility to purchase this directional drill rig as trailer version as well as on steel frame or as frame version with detachable crawler carriage. As a further option the rig is also available as modular system , i.e. the rig is consisting of single modular units with a maximum weight of strong> 20 t each. This enables very fast set-up and dismantling of the rig. That is why it is one of the most favorite directional drill rigs made by PRIME DRILLING.

The PD 450/150 RP-C is available with the diesel engine for drive function mounted "on board". With the trailer and the frame version the drive unit is supplied in a separate power pack (20 ft. container) of optional capacities of 470 kW, 570 kW and 880 kW.

Due to the high torque and the high pull force, drillings of up to 2,600 m in length and pipe diameters of up to 2,000 mm are possible. Equipped with a rack and pinion feed system (R&P), the drill mast has a feeding length of 11 m, so that range 2 drill pipes can be used. The drilling angle of the mast of 6° - 15° can be adjusted via 6 hydraulic cylinders which are installed in the front section of the mast support.

Driven by 10 hydraulic motors the power rotary head has a torque of 150,000 Nm and can be shifted into three gear steps. The torque can be increased to 180,000 Nm.

Furthermore the drill rig is available with drill pipe supply system, hydraulic manipulator, drill pipe crane, camera system, a drill data log-in system as well as with further options.

On customers request the PD 450/150 RP is available with separate 10 ft. or 20 ft operating container equipped with monitor and joystick control system.

The PD 500/180 RP is equipped with a powerful 470 kW diesel engine. Furthermore there is the possibility to purchase this directional drill rig as trailer version as well as on steel frame or as frame version with detachable crawler carriage. As a further option the rig is also available as modular system , i.e. the rig is consisting of single modular units with a maximum weight of strong> 20 t each. This enables very fast set-up and dismantling of the rig. That is why it is one of the most favorite directional drill rigs made by PRIME DRILLING.

The PD 500/180 RP-C is available with the diesel engine for drive function mounted "on board". With the trailer and the frame version the drive unit is supplied in a separate power pack (20 ft. container) of optional capacities of 470 kW, 570 kW and 880 kW.

Due to the high torque and the high pull force, drillings of up to 2,600 m in length and pipe diameters of up to 2,000 mm are possible. Equipped with a rack and pinion feed system (R&P), the drill mast has a feeding length of 11 m, so that range 2 drill pipes can be used. The drilling angle of the mast of 6° - 15° can be adjusted via 6 hydraulic cylinders which are installed in the front section of the mast support.

Driven by 12 hydraulic motors the power rotary head has a torque of 180,000 Nm and can be shifted into three gear steps.

Furthermore the drill rig is available with drill pipe supply system, hydraulic manipulator, drill pipe crane, camera system, a drill data log-in system as well as with further options.

On customers request the PD 500/180 RP is available with separate 10 ft. or 20 ft operating container equipped with monitor and joystick control system.

The PD 600/180 RP is equipped with a powerful 470 kW diesel engine. Furthermore there is the possibility to purchase this directional drill rig as trailer version as well as on steel frame or as frame version with detachable crawler carriage. As a further option the rig is also available as modular system , i.e. the rig is consisting of single modular units with a maximum weight of strong> 20 t each. This enables very fast set-up and dismantling of the rig. That is why it is one of the most favorite directional drill rigs made by PRIME DRILLING.

The PD 600/180 RP-C is available with the diesel engine for drive function mounted "on board". With the trailer and the frame version the drive unit is supplied in a separate power pack (20 ft. container) of optional capacities of 470 kW, 570 kW and 880 kW.

Due to the high torque and the high pull force, drillings of up to 2,600 m in length and pipe diameters of up to 2,200 mm are possible. Equipped with a rack and pinion feed system (R&P), the drill mast has a feeding length of 11 m, so that range 2 drill pipes can be used. The drilling angle of the mast of 6° - 15° can be adjusted via 6 hydraulic cylinders which are installed in the front section of the mast support.

Driven by 12 hydraulic motors the power rotary head has a torque of 180,000 Nm and can be shifted into three gear steps.

Furthermore the drill rig is available with drill pipe supply system, hydraulic manipulator, drill pipe crane, camera system, a drill data log-in system as well as with further options.

On customers request the PD 600/180 RP is available with separate 10 ft. or 20 ft operating container equipped with monitor and joystick control system.
